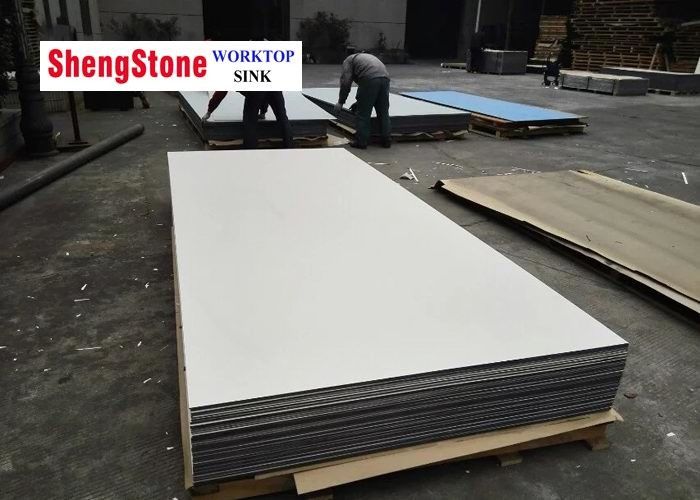

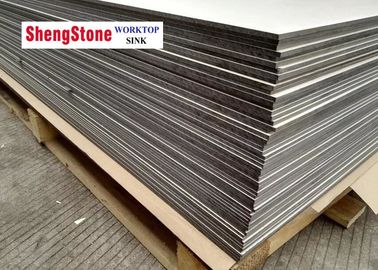

White Color Phenolic Slab Corrosion Resistant For Chemical Plant Worktop

Basic Infomation
Place of Origin: CHINA
Brand Name: SHENGSTONE
Certification: CE,SGS
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Wood Box Or Pallet
Delivery Time: 15-40 work days
Payment Terms: T/T
Supply Ability: 10000 Square Meter per Month
Detail Infomation
Material: Phenolic Resin Thickness: 12.7mm,16mm,19mm
Usage: Laboratory Worktop Place Of Origin: China
Type: Laboratory Parts Application: Educational Services Laboratory Furniture

Product Description

2018-3-22



White Color Phenolic Salb Used In Chemical Plant Worktop



1. Slab Size:



1220mm*2440mm 1220mm*3050mm 1220mm*3660mm

1525mm*3050mm 1525mm*3660mm

1830mm*1830mm 1830mm*3660mm



Thickness: 12.7/16/19 mm



Surface:Matte



2. Product Description



Physical and chemical plate is a kind of specially made for laboratory stage face plate, by more than 140 phenolic resin impregnated finest imported kraft paper.

Through special processing of decorative color paper, reoccupy etch steel at 150 ℃ high temperature 1430 psi high pressure environment, through melting and irreversible aging hardening of 60 minutes a integrated.

Physical and chemical plate color is rich, have such as bright surface of dumb light of a variety of surface texture, its surface after the special chemical treatment has more powerful chemical resistance performance.

Comprehensive erosion resistance against acid and alkali, three levels of protective structure: 1.  The Chemical membrane Chemical - resistant qualities.2. The color Paper Deco Paper;3. Special multi-layer Kraft Paper (Kraft Paper).



4. Acid Resistance



Test name Test result Grading result
85% sulfuric acid Specimen surface gloss and color no obvious change Level 1
98% sulfuric acid Specimen surface gloss and color no obvious change Level 1
50% nitric acid Specimen surface gloss and color no obvious change Level 1
65% nitric acid Specimen surface gloss and color no obvious change Level 1
36% hydrochloric acid Specimen surface gloss and color no obvious change Level 1
85% phosphoric acid Specimen surface gloss and color no obvious change Level 1
60% chromic acid Specimen surface gloss and color no obvious change Level 1
Acetic acid Specimen surface gloss and color no obvious change Level 1
Uric acid Specimen surface gloss and color no obvious change Level 1
Picrate Specimen surface gloss and color no obvious change Level 1
Formic acid Specimen surface gloss and color no obvious change Level 1
Perchlorate Specimen surface gloss and color no obvious change Level 1
Tannic acid Specimen surface gloss and color no obvious change Level 1





3. Physical Characteristics



Mechanical Property Test Standard Test Result
Flexural Strength MD 205Mpa
Compressive Strength MD 321Mpa
Tensile Strength MD 178Mpa
IZOD Impact strength CD 102Mpa
ASTM D 256-06a 42J/M
Flexural Modules ASTM D 792-07 16.5Gpz
Rockwell Hardness ASTM D 785-08 HRE79.7
Liquid Absorption ASTM D 570-98 0.73%
