High Temperature Resistant Fume Hood Parts Laboratory Worktops Size Custom

High Temperature Resistant Fume Hood Parts Laboratory Worktops Size Custom

High Temperature Resistant Fume Hood Parts Laboratory Worktops Size Custom

Product Details:

Place of Origin: CHINA
Brand Name: SHENGSTONE
Certification: CE,SGS

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Wood Box Or Pallet
Delivery Time: 15-40 work days
Payment Terms: T/T
Supply Ability: 500 pcs Month
Contact Now
Detailed Product Description
Application: Fume Hood Worktop Material: Epoxy Resin
Color: Black Usage: Laboratory Fume Hood
Certificate: SGS Function: Strong Alkali Resistance
Countertop Edging: Marine Edge Surface: Matte
Place Of Origin: China Type: Fume Hood Parts
Customized: Customized Feature: Chemicals And Heat Resistance

2018-3-29

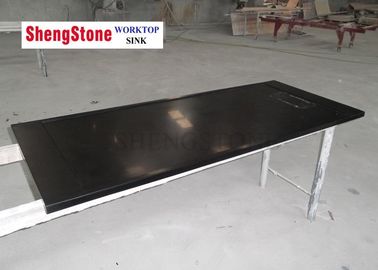

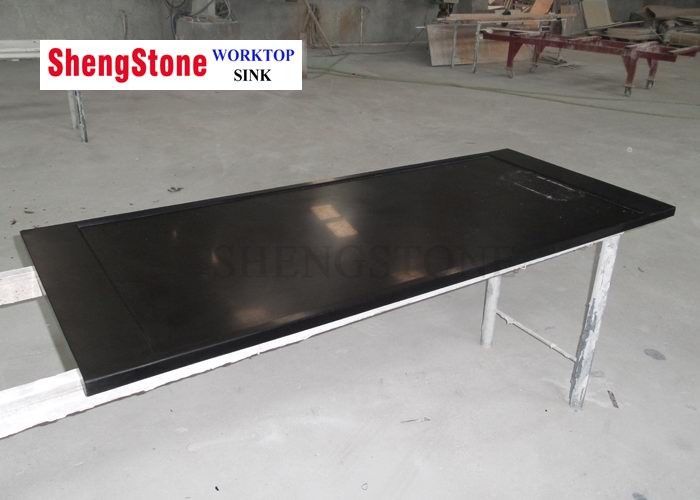

High Temperature Resistant Epoxy Resin Fume Hood Worktop in laboratory



1. Worktop Chemical Property



Testing method

After 24 hour exposure,exposed areas are washed with water,then a detergent solution,finally with naphtha,then rinsed with distillde water and dried with a cloth.Change in surface finish and function shall be described by the following(1-5) ratings:

1) No Effect: No detectable change in the material surface.

2) Good: Clearly discernible change in color or gloss,but no significant impairment of surface life or function.

3) Fair: Objectionable change in appearance due to surface discoloration or etch,possiby resulting in deterioration of function over an extended period.

4) Failure: Pitting, cratering or erosion of work surface material,obvious and significant deterioration.



2. Product introduction



Classic epoxy resin fume hood bases provide a durable chemical resistant worksurface for the harshest laboratory environment-the fume hood.

The worksurface is surrounded by a 10mm integrally-molded containment rim designed to ease clean- ups and prevent hood and casework damage from large chemical spills.



Available for virtually every brand of fume hood cabinet manufactured today,classic fume hood bases are seamlessly molded up to 2489mm long.





3. Worktop Size



Length (mm) Width (mm) thickness (mm)
990 760 19/25
1290 760 19/25
1590 760 19/25
1530 816 19/25
1830 816 19/25
2190 760 19/25



4. Physical Property



Physical property
Test standard Imperial units International unit
Compressive strength ASTMD695 38.355psi 264MPa
Bending strength ASTMD790 13.210psi 90.9MPa
Tensile strength ASTMD638 11.100psi 76MPa
Density ASTMD792 143.64lbs/ft3 2.30g.cm3
M hardness ASTMD785 93.7 93.7
Hot deformation temperature ASTMD648 457°F 230℃
Coefficient of thermal expansion ASTMD696 1.2*10-5in/°F 2.65*10-5mm/℃
