| Place of Origin: | CHINA |
| Brand Name: | SHENGSTONE |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wood Box Or Pallet |
| Delivery Time: | 15-40 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 Square Meter per Month |
| Material: | Phenolic | Color: | Black |
|---|---|---|---|
| Thickness: | 12.7mm,16mm,19mm | Usage: | School Lab Worktop |
| Countertop Edging: | Flat Edge | Surface: | Matte |
| Place Of Origin: | China | Type: | Laboratory Parts |
| Application: | Laboratory Furniture | Corrosion Resistant: | Yes |
| Size: | 3050*1220 Mm | ||
| High Light: | phenolic laminated sheet,phenolic resin laminate sheet |
||
2018-3-30

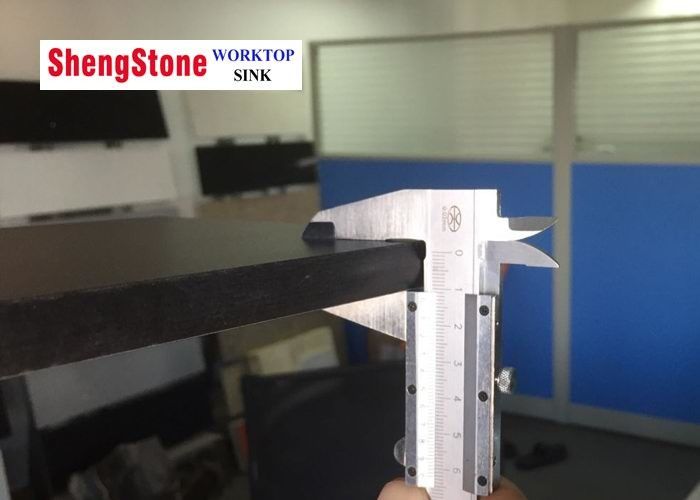

Standard Thickness 12.7mm Phenolic Resin Sheets In Lab Grade Work Surface
1. Slab Size:
1220mm*2440mm ,1220mm*3050mm ,1220mm*3660mm
1525mm*3050mm ,1525mm*3660mm
Thickness: 12.7/16/19 mm
Surface:Matte
2. Product Description
Phenolic Resin Pane color is rich, have such as bright surface of dumb light of a variety of surface texture, its surface after the special chemical treatment has more powerful chemical resistance performance.
Phenolic Resin Pane is a kind of specially made for laboratory stage face plate, by more than 140 phenolic resin impregnated finest imported kraft paper.
Through special processing of decorative color paper, reoccupy etch steel at 150 ℃ high temperature 1430 psi high pressure environment, through melting and irreversible aging hardening of 60 minutes a integrated.
Comprehensive erosion resistance against acid and alkali, three levels of protective structure:
1. The Chemical membrane Chemical - resistant qualities.
2. The color Paper Deco Paper;
3. Special multi-layer Kraft Paper (Kraft Paper).
3. Physical Characteristics
| Mechanical Property | Test Standard | Test Result |
| Flexural Strength | MD | 205Mpa |
| Compressive Strength | MD | 321Mpa |
| Tensile Strength | MD | 178Mpa |
| IZOD Impact strength | CD | 102Mpa |
| ASTM D 256-06a | 42J/M | |
| Flexural Modules | ASTM D 792-07 | 16.5Gpz |
| Rockwell Hardness | ASTM D 785-08 | HRE79.7 |
| Liquid Absorption | ASTM D 570-98 | 0.73% |
