Place of Origin: | CHINA |
Brand Name: | SHENGSTONE |
Minimum Order Quantity: | negotiation |
---|---|
Price: | negotiation |
Packaging Details: | Wood Box Or Pallet |
Delivery Time: | 15-40 work days |
Payment Terms: | T/T |
Supply Ability: | 10000 Square Meter per Month |
Material: | Pressure Chemical Resistant | Color: | Black,White,Blue,Grey |
---|---|---|---|
Thickness: | 12.7,16,19mm | Usage: | Chemistry Labs |
Surface: | Matt | Type: | Laboratory Parts |
Application: | Laboratory Furniture | Corrosion Resistant: | Yes |
Highlight: | phenolic laminated sheet,solid phenolic sheet |
2018-6-4

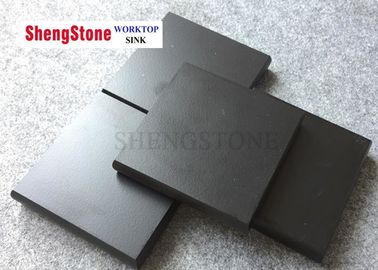

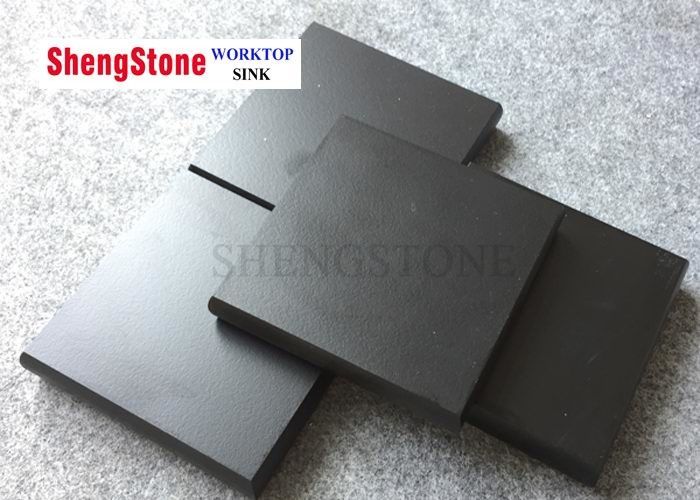

Phenolic Resin Sheet Chemistry Lab High Pressure Chemical Resistant Worktop
1. Slab Size:
1220mm*2440mm ,1220mm*3050mm ,1220mm*3660mm
1525mm*3050mm ,1525mm*3660mm
Thickness: 12.7/16/19 mm
Surface:Matt
2. Product Description
Comprehensive erosion resistance against acid and alkali, three levels of protective structure:
1. The Chemical membrane Chemical - resistant qualities.
2. The color Paper Deco Paper;
3. Special multi-layer Kraft Paper (Kraft Paper).
Phenolic Resin Pane color is rich, have such as bright surface of dumb light of a variety of surface texture, its surface after the special chemical treatment has more powerful chemical resistance performance.
Through special processing of decorative color paper, reoccupy etch steel at 150 ℃ high temperature 1430 psi high pressure environment, through melting and irreversible aging hardening of 60 minutes a integrated.
Phenolic Resin Pane is a kind of specially made for laboratory stage face plate, by more than 140 phenolic resin impregnated finest imported kraft paper.
3. Physical Characteristics
Mechanical Property | Test Standard | Test Result |
Flexural Strength | MD | 205Mpa |
Compressive Strength | MD | 321Mpa |
IZOD Impact strength | CD | 102Mpa |
ASTM D 256-06a | 42J/M | |
Flexural Modules | ASTM D 792-07 | 16.5Gpz |
Rockwell Hardness | ASTM D 785-08 | HRE79.7 |
Liquid Absorption | ASTM D 570-98 | 0.73% |
Tensile Strength | MD | 178Mpa |
4.Application
Laboratory worktop
