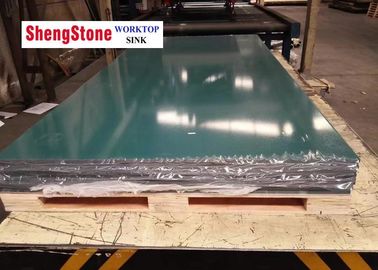

Custom Phenolic Resin Sheet Green Color For School / Hospital Lab Worktop

Custom Phenolic Resin Sheet Green Color For School / Hospital Lab Worktop

  • Custom Phenolic Resin Sheet Green Color For School / Hospital Lab Worktop
Custom Phenolic Resin Sheet Green Color For School / Hospital Lab Worktop
Product Details:
Place of Origin: CHINA
Brand Name: SHENGSTONE
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: Wood Box Or Pallet
Delivery Time: 15-40 work days
Payment Terms: T/T
Supply Ability: 10000 Square Meter per Month
Contact Now
Detailed Product Description
Material: Phenolic Color: Green
Thickness: 12.7mm Usage: Lab Worktop
Place Of Origin: China Type: Laboratory Parts
Application: Laboratory Furniture Corrosion Resistant: Yes
High Light:

phenolic laminated sheet

,

phenolic resin laminate sheet

2018-3-30



Use Green Phenolic Resin Sheets As The Worktop Of School/Hospital Lab



1. Slab Size:



1220mm*2440mm ,1220mm*3050mm ,1220mm*3660mm

1525mm*3050mm ,1525mm*3660mm



Thickness: 12.7/16/19 mm



Surface:Matte



2. Product Description



Phenolic Resin Pane color is rich, have such as bright surface of dumb light of a variety of surface texture, its surface after the special chemical treatment has more powerful chemical resistance performance.



Phenolic Resin Pane is a kind of specially made for laboratory stage face plate, by more than 140 phenolic resin impregnated finest imported kraft paper.



Through special processing of decorative color paper, reoccupy etch steel at 150 ℃ high temperature 1430 psi high pressure environment, through melting and irreversible aging hardening of 60 minutes a integrated.



Comprehensive erosion resistance against acid and alkali, three levels of protective structure:

1. The Chemical membrane Chemical - resistant qualities.

2. The color Paper Deco Paper;

3. Special multi-layer Kraft Paper (Kraft Paper).





3.Physical Characteristics



Mechanical Property Test Standard Test Result
Flexural Strength MD 205Mpa
Compressive Strength MD 321Mpa
Tensile Strength MD 178Mpa
IZOD Impact strength CD 102Mpa
ASTM D 256-06a 42J/M
Flexural Modules ASTM D 792-07 16.5Gpz
Rockwell Hardness ASTM D 785-08 HRE79.7
Liquid Absorption ASTM D 570-98 0.73%



4. Acid resistance

Test name Test result Grading result
85% sulfuric acid Specimen surface gloss and color no obvious change Level 1
98% sulfuric acid Specimen surface gloss and color no obvious change Level 1
50% nitric acid Specimen surface gloss and color no obvious change Level 1
65% nitric acid Specimen surface gloss and color no obvious change Level 1
36% hydrochloric acid Specimen surface gloss and color no obvious change Level 1
85% phosphoric acid Specimen surface gloss and color no obvious change Level 1
40% hydrofluoric acid Specimen surface gloss and color no obvious change Level 1
60% chromic acid Specimen surface gloss and color no obvious change Level 1
99% glacial acetic acid Specimen surface gloss and color no obvious change Level 1
Acetic acid Specimen surface gloss and color no obvious change Level 1
